Equipment

HAM licenses:
- Amateur Extra Class License / KM4LQS (since October 31 2015)
- General Class License / KM4LQS (between July 10 2015 and October 30 2015)
- CEPT License / HB9NA (since November 8 2014)
- CEPT License / HB9FDS (since November 01 2011)
- CEPT Novice License / HB3YAP (between Mai 26 2011 and October 31 2011)
Member of:
- USKA (HB9A) (since September 08 2011)
- USKA Sektion Aargau (HB9AG) (betweeen November 04 2011 and August 01 2015)
 - IG Notfunk Aargau (HB9NA) (since August 01 2014)
 - SWISS ARTG (since November 15 2014)
QTH's:
- JN47DJ - Kreuzzelgstrasse 4, 5507 Mellingen AG, Switzerland
 - JN47EN - Schulstrasse 19, 5465 Mellikon AG, Switzerland

Equipment Home-Shack:

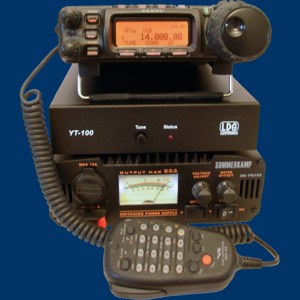

YAESU FT-857D (KW/6m/2m/70cm/US-Version)
+ Diamond X-510N (Base-Antenna 2m/70cm)
+ LDG YT-100 (Antenna-Tuner)
+ 1:9 UnUn and Wire-Antenna 20m

SOMMERKAMP SK-PS35S (Power-Supply)

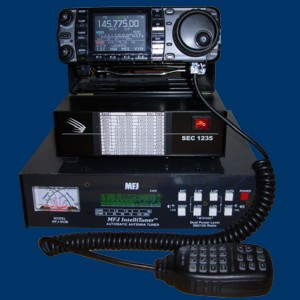

ICOM IC-7000 (KW/6m/2m/70cm)
+ WCS-7000 (USB-Programming-Cable and Software)
+ ICOM AH-4 (Automatic Antenna-Tuner)
+ Diamond X-510N (Base-Antenna 2m/70cm)
+ MFJ-993B (Antenna-Tuner)
+ MFJ-5124I (Autotuner to Icom Interface Cable)
+ Diamond W-8010 (Base-Antenna KW)
+ Fritzel GPA50 (Vertical Base-Antenna KW)
+ Multistick DX (Base-Antenna Multiband-RX)

SAMLEX SEC-1235 (Power-Supply)

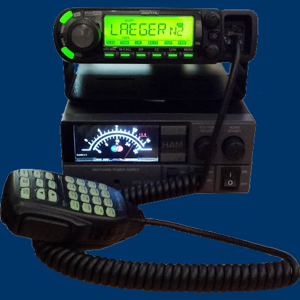

ICOM ID-E880 (2m/70cm/D-Star)
+ WCS-D880 (USB-Programming-Cable and Software)
+ Diamond X-50N (Base-Antenna 2m/70cm)

DIFONA SPS-1230 (Power-Supply)
Equipment currently unmounted due to Reloacation:

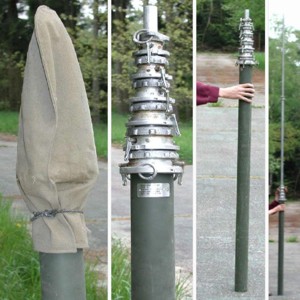

 NVA Telescopic Mast HTM-10 (7 Elements 65/58/51/44/37/30/23mm / 11 Meters)
Date of Manufacture: between 1952 and 1990
Previously used by the "Nationale Volks-Armee" in Germany

Bildquelle: www.ostron.de

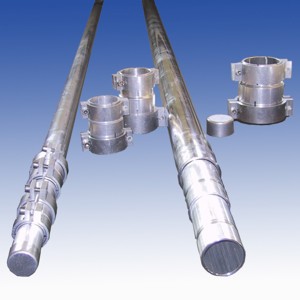

Wipic/Letrona Euromast (5 Elements 80/72/66/60/55mm / 10 Meters)
Date of Manufacture: Oct 1982
Previously used by a Fire Station in Canton Zurich, Switzerland

Bildquelle: www.letrona.ch

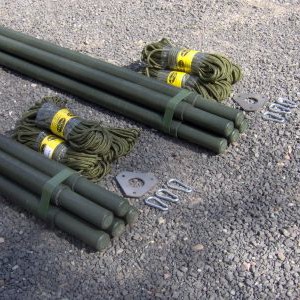

Glass-Fiber Mast System (7 Elements 1200x35mm / 8.4 Meters)
Can be extended to 12 Meters or more.

Glass-Fiber Mast System (7 Elements 1200x35mm / 8.4 Meters)
Can be extended to 12 Meters or more.

Bildquelle: www.steckmast.de
Self build Telescopic Mast (4 Elements / 4 Meters)
Self build Telescopic Mast (2 Elements / 5 Meters)
Self build Telescopic Mast (2 Elements / 5 Meters)

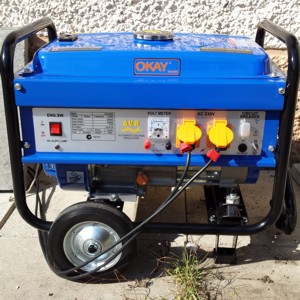

Power Genearator OKAY STG-3000 - 230V 50Hz, Single Phase / 2.5kVA (2.8kVA Peak)
- 1x DC 12V 8.3A
- 2x AC 230V 2.5 10.8A (12.1 A Peak)
- Fuel: 15 Liter (Unleaded 95 Ocante)
- Weight: 42 kg (Dry)
All Base-Antennas are connected by Aircell-7-Coaxial-Cable and protected by Diamond CA-35RS Lightning-Arresters.
Equipment Mobile:
ICOM IC-E2820 (2m/70cm/D-Star)
+ UT-123 (D-Star & GPS Module)
+ WCS2820 (USB-Programming-Cable and Software)
+ Diamond/Sommerkamp NR-770HSP/NR-881HB 102cm, 2.15/5.5dBi (2m/70cm Mobile-Antenna)
+ Diamond/Sommerkamp NR-770HSP/NR-881HB 102cm, 2.15/5.5dBi (2m/70cm Mobile-Antenna)
+ Nagoya NL-R2 38cm, 2,15/3.0dBi (2m/70cm Mobile Antenna)
+ Nagoya NL-R2 38cm, 2,15/3.0dBi (2m/70cm Mobile Antenna)
+ SIRO MAG 125 PL (Magnetic Mount for NR-770HSP/NR-881HB or NL-R2)
+ SIRO MAG 125 PL (Magnetic Mount for NR-770HSP/NR-881HB or NL-R2)
+ Diamond MR-77 50cm, 2.5/3.4dBi (2m/70cm Mobile-Antenna)
+ Diamond MR-77 50cm, 2.5/3.4dBi (2m/70cm Mobile-Antenna)

APRS: HB9FDS-15
Equipment Portable:
YAESU VX-8DE (6m/2m/70cm)
+ ADMS-VX8 (Programmer-Kit)
+ CD-41 (Charging-Device)
+ CN-3 (Adapter SMA-M to BNC-F)
+ CSC-93 (Soft-Case)
+ CT-131 (Microphone-Adapter)
+ CT-136 (GPS-Adapter)
+ E-DC-5B (Cigarette Lighter Cord with Noise Filter)
+ FGPS-2 (GPS-Unit)
+ FNB-102LI (Lithium-Ion Batter Pack 1800mAh)
+ FNB-102LI (Lithium-Ion Batter Pack 1800mAh)
+ MH-74A7A (Speaker-Microphone)
+ VC-25 (Vox-Headset)
+ Diamond RB-26 SMA (Mini-Magnetic Mount for SMA-Antennas)
+ Diamond SRH-701 19cm, x.xxdBi (2m/70cm SMA-Handy-Antenna)
+ Sommerkamp SHK-882SP 40cm, 2.15dBi (2m/70cm SMA-Handy-Antenna)

APRS: HB9FDS- 7
YAESU FT1DE(2m/70cm/C4FM)
+ ADMS-FT1D (Programmer-Kit)
+ CD-41 (Charging-Device)
+ CD-41 (Charging-Device)
+ FNB-101LI (Lithium-Ion Batter Pack 1100mAh)
+ FNB-102LI (Lithium-Ion Batter Pack 1800mAh)
+ Diamond SRH-701 19cm, x.xxdBi (2m/70cm SMA-Handy-Antenna)
+ Diamond SRH-771 40cm, 2.15dBi (2m/70cm SMA-Handy-Antenna)
+ Telecom RB-16 SMA (Mini Magnetic Mount)
+ Window Mount SMA (Car Window Mount)
YAESU VX-3E (2m/70cm)
+ ADMS-VX3 (Programmer-Kit)
+ CN-3 (Adapter SMA-M to BNC-F)
+ FBA-37 (3xAA Battery-Case)
+ MH-34B4B (Speaker-Microphone)
+ MH-37A4B (Earpiece-Microphone)
+ Diamond SRH-701 19cm, x.xxdBi (2m/70cm SMA-Handy-Antenna)
+ Sommerkamp SKH-47SP 36cm, 2.15dBi (2m/70cm SMA-Handy-Antenna)
+ Sommerkamp SKH-812SP 19cm, x.xxdBi (2m/70cm SMA-Handy-Antenna)
YAESU VX-3 (2m/70cm/Export)
+ CN-3 (Adapter SMA-M to BNC-F)
+ CSC-92 (Soft-Case)
+ FBA-37 (3xAA Battery-Case)
+ MH-34B4B (Speaker-Microphone)
+ MH-37A4B (Earpiece-Microphone)
+ Diamond SRH-701 19cm, x.xxdBi (2m/70cm SMA-Handy-Antenna)
+ Diamond MR-77S 50cm, 2.5/3.4dBi (2m/70cm Mobile-Antenna)
+ Sommerkamp SKH-812SP 19cm, x.xxdBi (2m/70cm SMA-Handy-Antenna)
+ Sommerkamp SRH-620 21cm, x.xxdBi (2m/70cm SMA-Handy-Antenna)
BAOFENG UV3-R (2m/70cm)
+ Programming-Cable
BAOFENG UV3-R (2m/70cm)
PUXING PX-888 (2m/70cm)
+ Adapter R-SMA-F to UHF-F
+ CM01 Speaker-Microphone
+ RH-771 36cm, 2.15dBi (2m/70cm SMA-Female-Handy-Antenna)
+ Programming-Cable
ALBRECHT AE-230H (Scanner)
+ Diamond MR-77B 50cm, 2.5/3.4dBi (2m/70cm Mobile-Antenna)
GOOIT GY560 (Frequency Counter)
